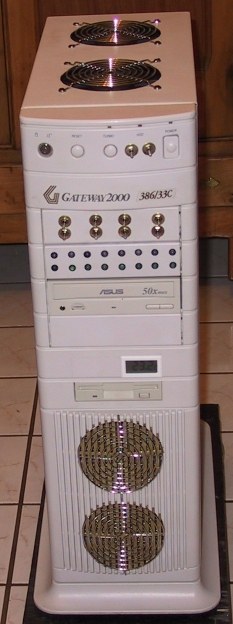

Front panel (eat your heart out Gateway) The fan guards snap in place, with a very tight fit. The bay bus takes up 2 bays, LED's for off (green) and on (blue). Went I get the neons and a little more camera experience I'll post some night pics.
Originally it was going to be a 7 volt setup but 7volts won't start up the fans so I didn't like it and decided on the variable PS.
The two mini toggles at the top are to turn off and on the neon lights once I get them. Replaced the washers that came with the switches with brass washers to keep with the white on gold color theme.
The p3v4x actually has a keylock terminal connection on the motherboad, works great although I have no need to use it. (forgot to put in the key for the pics, painted gold looks cool)
Over the years a little bit of a color change in cases it seems. The CD and floppy don't match the case. Oh well, I'll try for perfect on the next mod.
Had to modify the on off switch to accommodate ATX for factor switch. Hocked up the turbo led to incoming message terminal on motherboard. Blow holes, temperature LED, cd-rom, and floppy. Thats about it.
