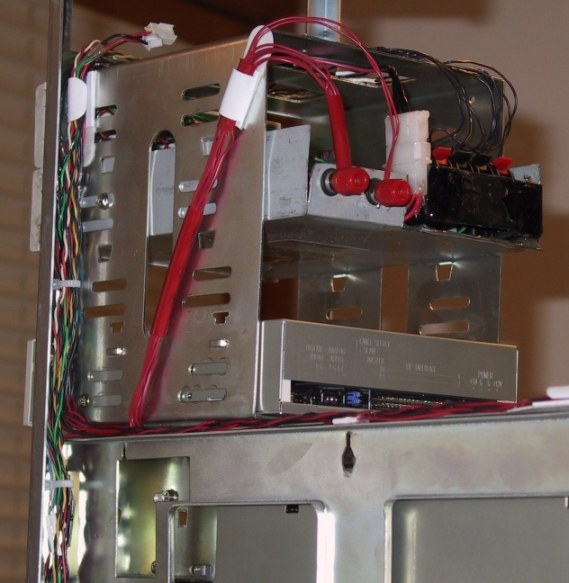

Ouch! the bay fan bus. The first try was very neat and worthy of
photographing, although after 2 rewire jobs and redesigning a second time
it ended up much more functional although not as attrative.
Now its more accessible, but lets not look
any further, ok.
You get a pretty good look here at the wiring loom for the fans and face
plate accessories. Very clean and out of the way. Held together with tie
downs and in place with silicon.
