Viewed hanging out the front on top of the fan bay bus
are some of the connections to the face plate. Although connections are
fairly difficult the face is removable but a future project is needed
in making this a little easier.

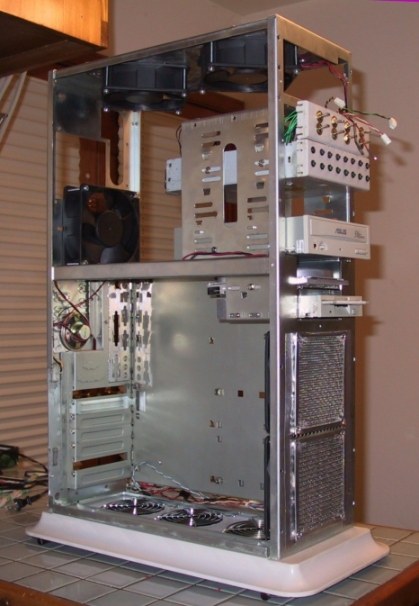

This is a pretty good view of the skeleton. I already got started installing the
drives before the camera came.
It was quit a bit of work to convert it to ATX form factor. I used the removable motherboard
tray from a addtronics case I trashed. The rear connector plate also attaches to the
tray. With some modifications it fit nicely into the old case.
The fan wires are completely hidden on the opposite side of the case
and you can see the molex connector in the rear panel used to hook up an
external power supply. I'm getting a variable power supply that runs the fans at any voltage from 0-12 volts
sometime in the future.
The photo needs to be taken again. Don't you think?
