3.1-R

Sorry, I no longer make this kit.

The 3.1-R is my latest cylinder that has been through testing and is designed to operate a submarine that is between 40-50" in length, and at least 3.5" ID. The 3.1-R uses the RCABS-R system that is described in the ballast systems section. This will be a limited production item that will be built to order. It will be RTR (Ready To Run). All you will need is your own transmitter and receiver.    The cylinder has a 18 OZ ballast lift.

  The cylinder has great features like.

A-R/X mounted in the front cap away from any system noise.

B-Direct drive high torque low amp motor.

C-High amp BEC.

D-Modular construction (Breaks down easy for maintenance)

E-New RCABS seals.

F-Ability to add front end cap option that holds two servos for bow planes and other functions.

G-All electronically switched ballast system. (No moving parts)

H-Built in MPD (Missing Pulse Detector) failsafe.

I-Linear operating ballast control with the ability to almost hover at depth.

Cylinder Specifications.

1-Voltage, 6-8.4 volts

2-Motor, Johnson high torque low amp.

3-Compressor pump, 6-volt 11-PSI maximum pressure.

4-Servos, two high torque metal gear.

5-SES-3-ballast control with MPD (Missing Pulse Detector) failsafe.

6-Clippard-vent valve.

7-Mtronik Viper-15 ESC with BEC and failsafe.

8-Length 25"

9-Diameter 3.125"

10-Weight 2 LBS 15 OZ

11-Ballast lift 18 OZ

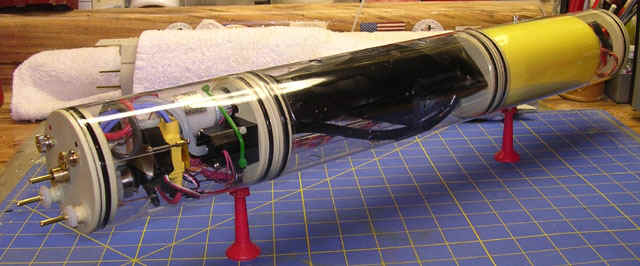

Cylinder as supplied minus receiver

The cost is $550 for this cylinder.
