BRISTOL MOUNTAIN RANGE |
|
Site Photos |
|
145.11 REPEATER |
|
THE PREMIER COVERAGE REPEATER |
|

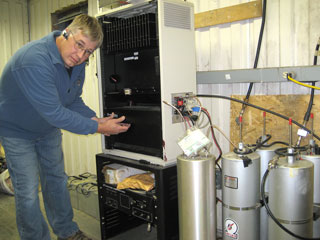

Mike is accessing the Transmitter/Receiver bay (Jim, why isn’t this repeater coming through my Bluetooth headset … yet?) |
|
- S-Com 7K Controller
- 100W Continuous Duty Power Amp. (@50W)
- 30 Amp Power Supply w/batt. charger
- Control boards to backplane.
- Transmitter / Receiver Tray |
|
16CH. UHF Remote Base |
|
System 1 -Repeater chassis
2 -17db AR Rx. Pre-amp
3 -TX/RX Varinotch Rx.Filter
4 –Sinclair Duplexer |
|
1 |
|
2 |
|
3 |
|
4 |
|
Repeater Chassis Motorola MSR-2000 |
|
Jim is installing the 16 CH. UHF Remote Base Radio. |
|
145.11 Tower at 190 feet. Main antenna on upper left stand-off. UHF Remote Base antenna above it on back side (not visible). Two bottom antennas are backups. |
|
Inspecting the four 100Ah storage batteries that keep the repeater in operation during outages. |
|
