RPM Exploded View

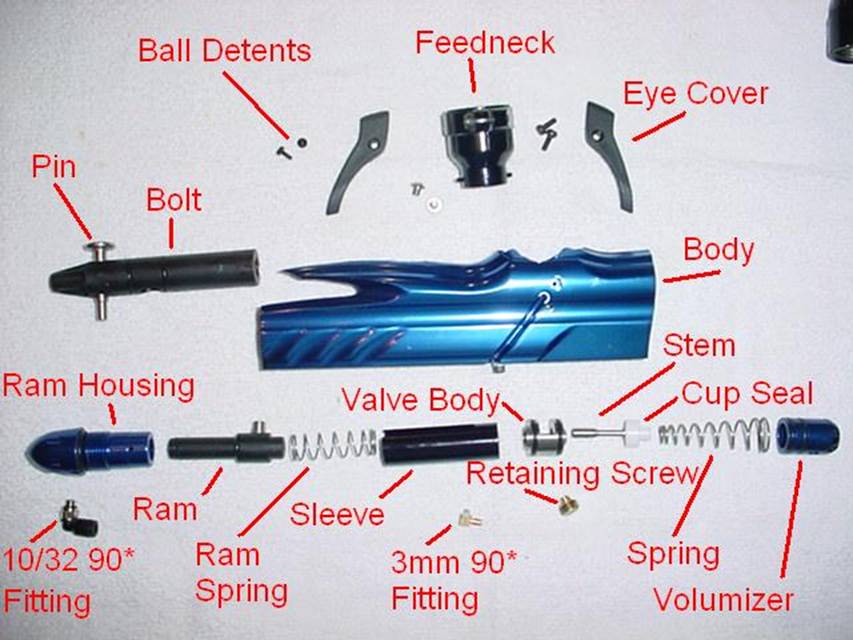

Body and parts

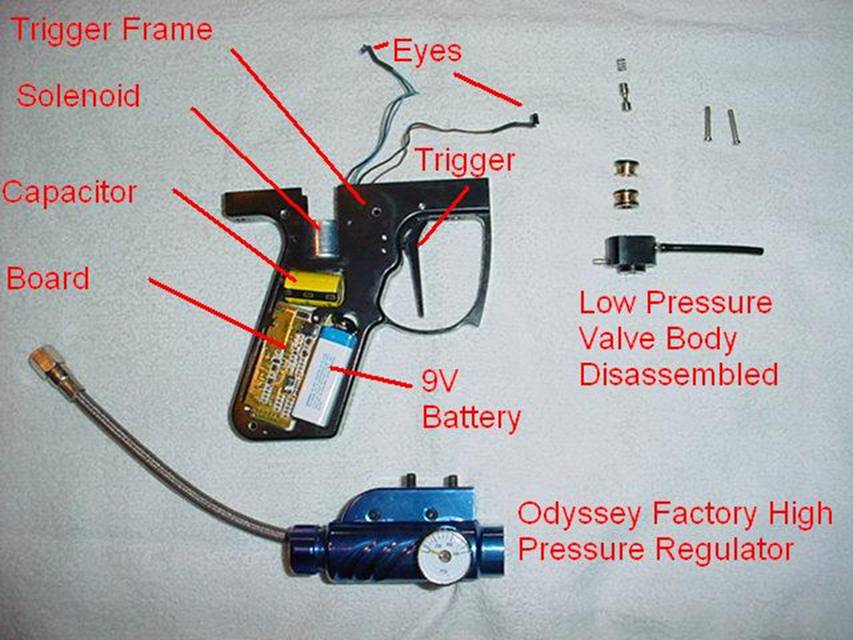

Trigger Frame and Parts

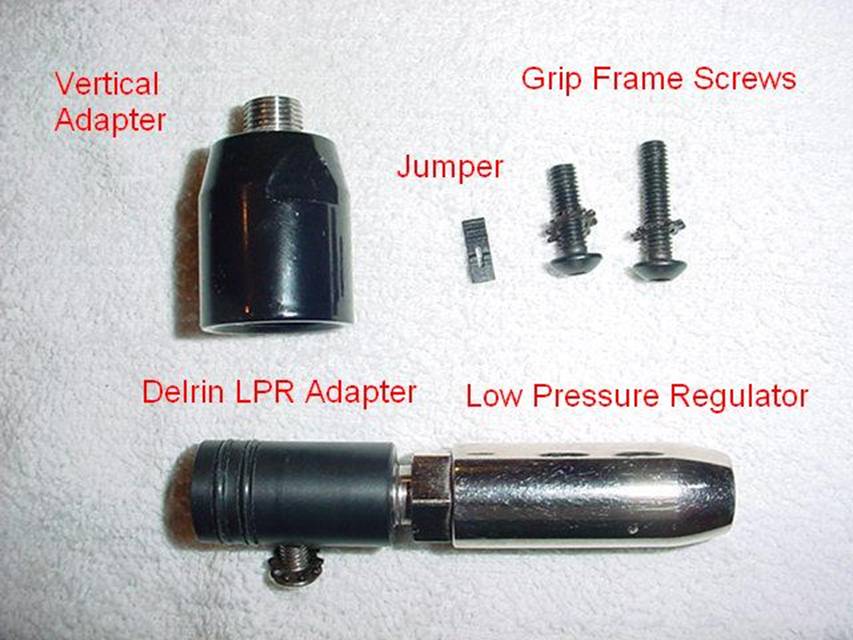

Misc. Upgrade Parts

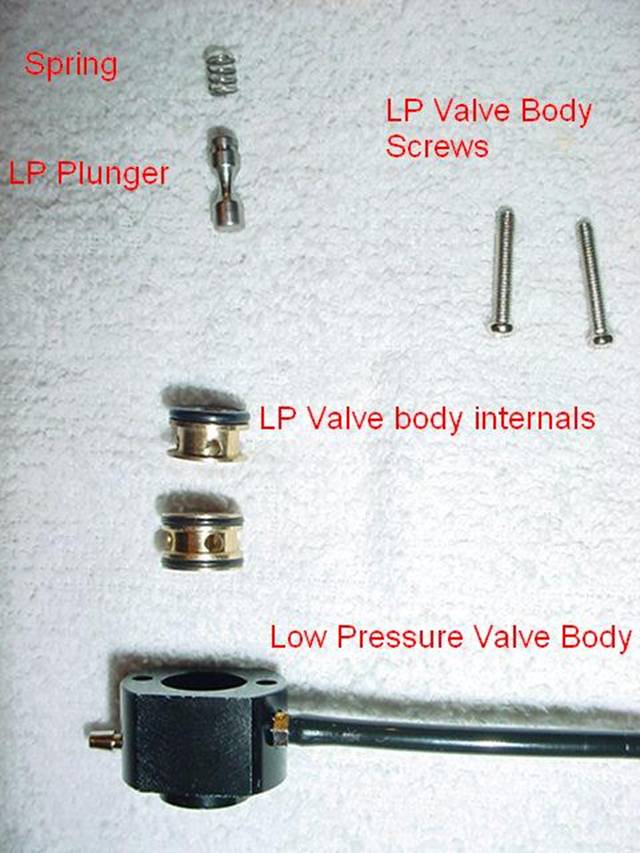

Low Pressure Valve Body Disassembled

Please note some items may be labeled different than the owner’s manual. For example;

Spring = cup seal spring

Retaining screw = Valve stop Screw

But for the most part if you feel confident enough to disassemble the marker you should be able to figure out the parts and the part names…
